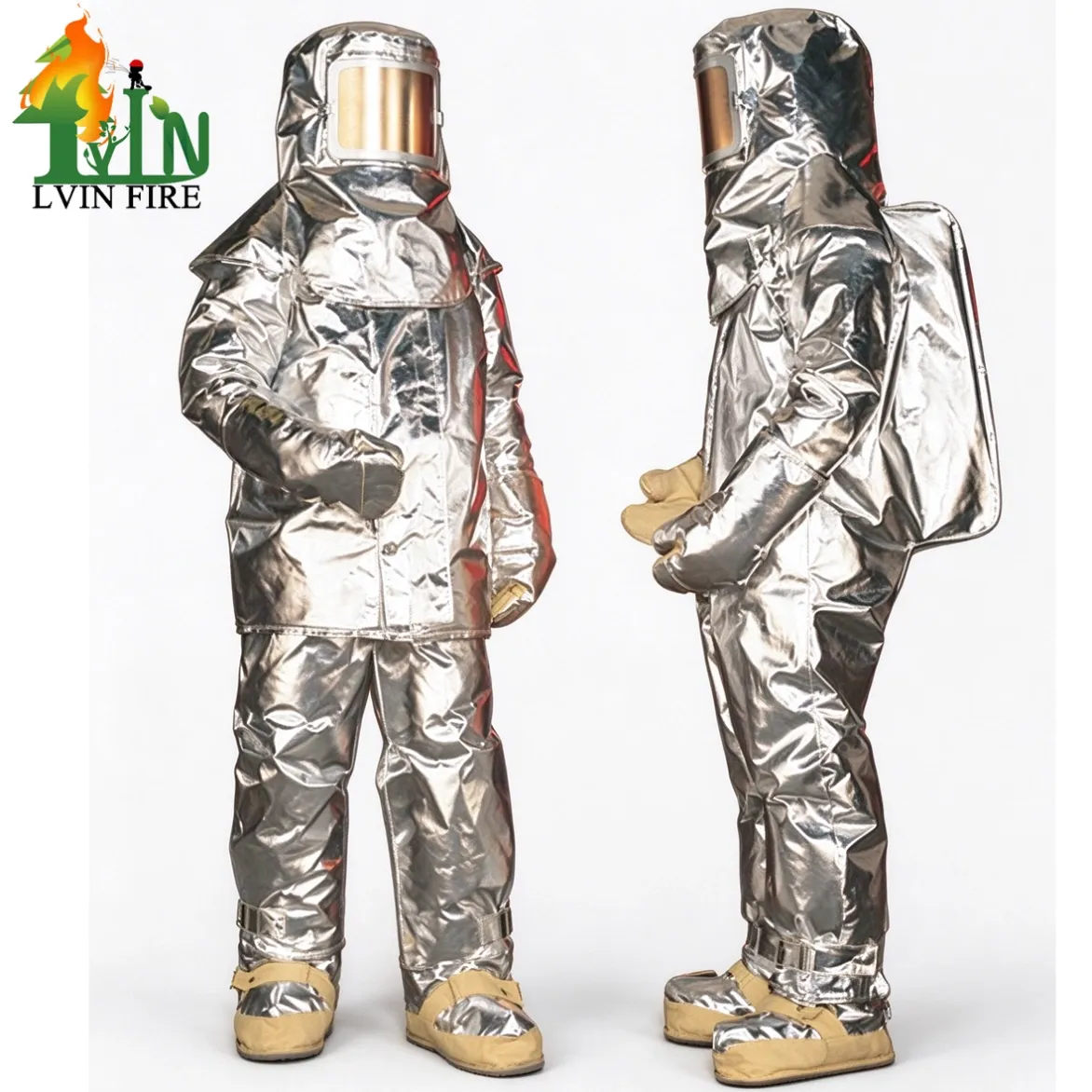

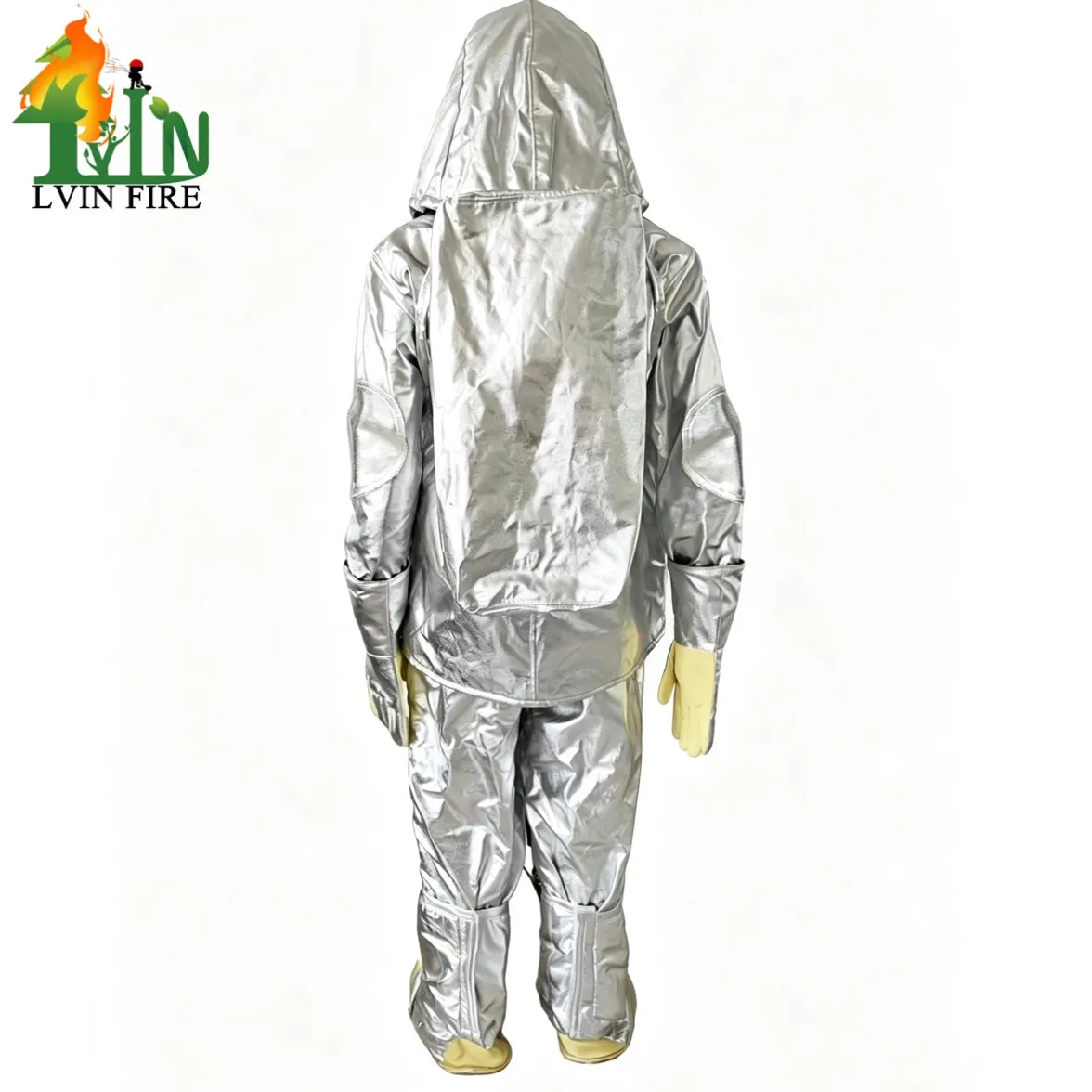

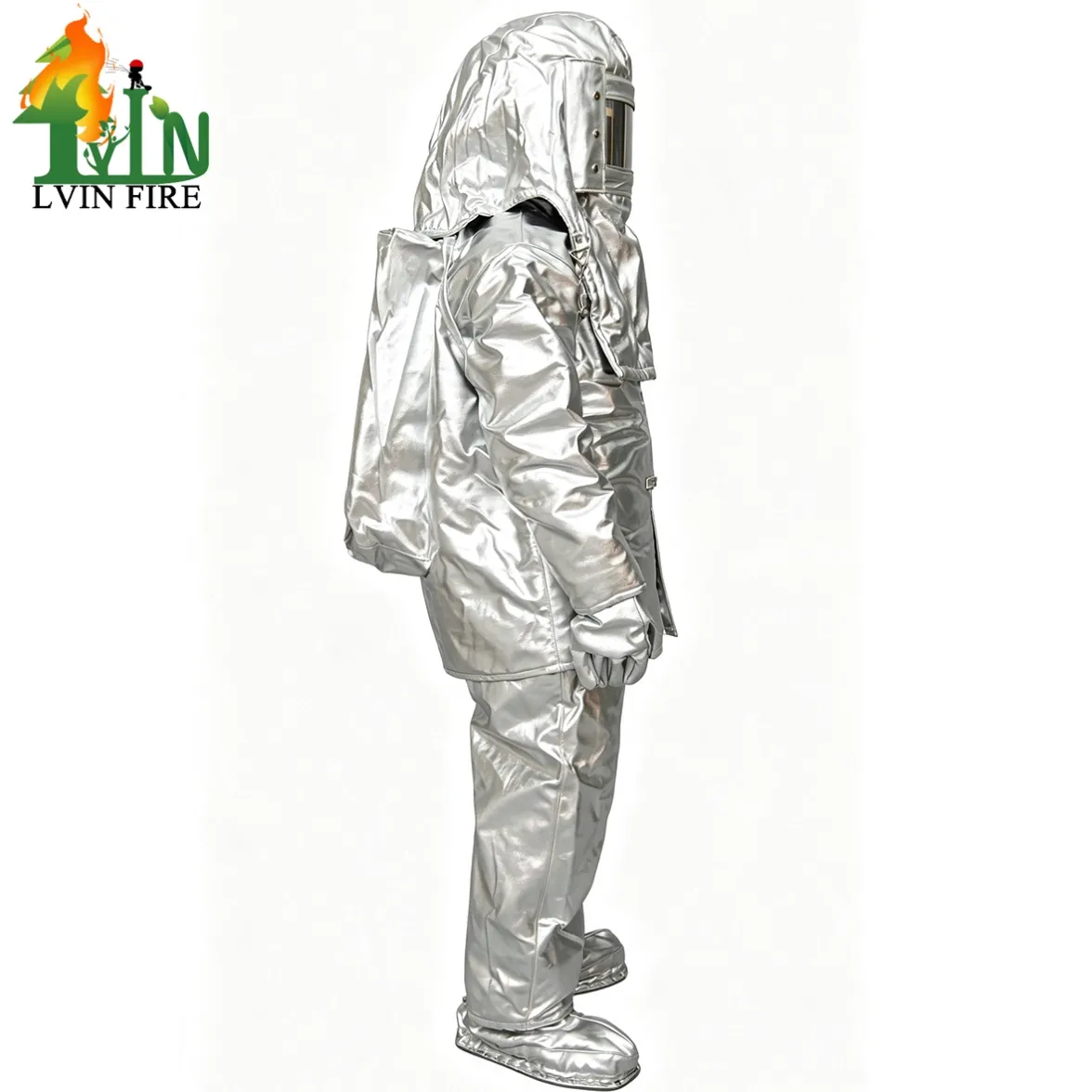

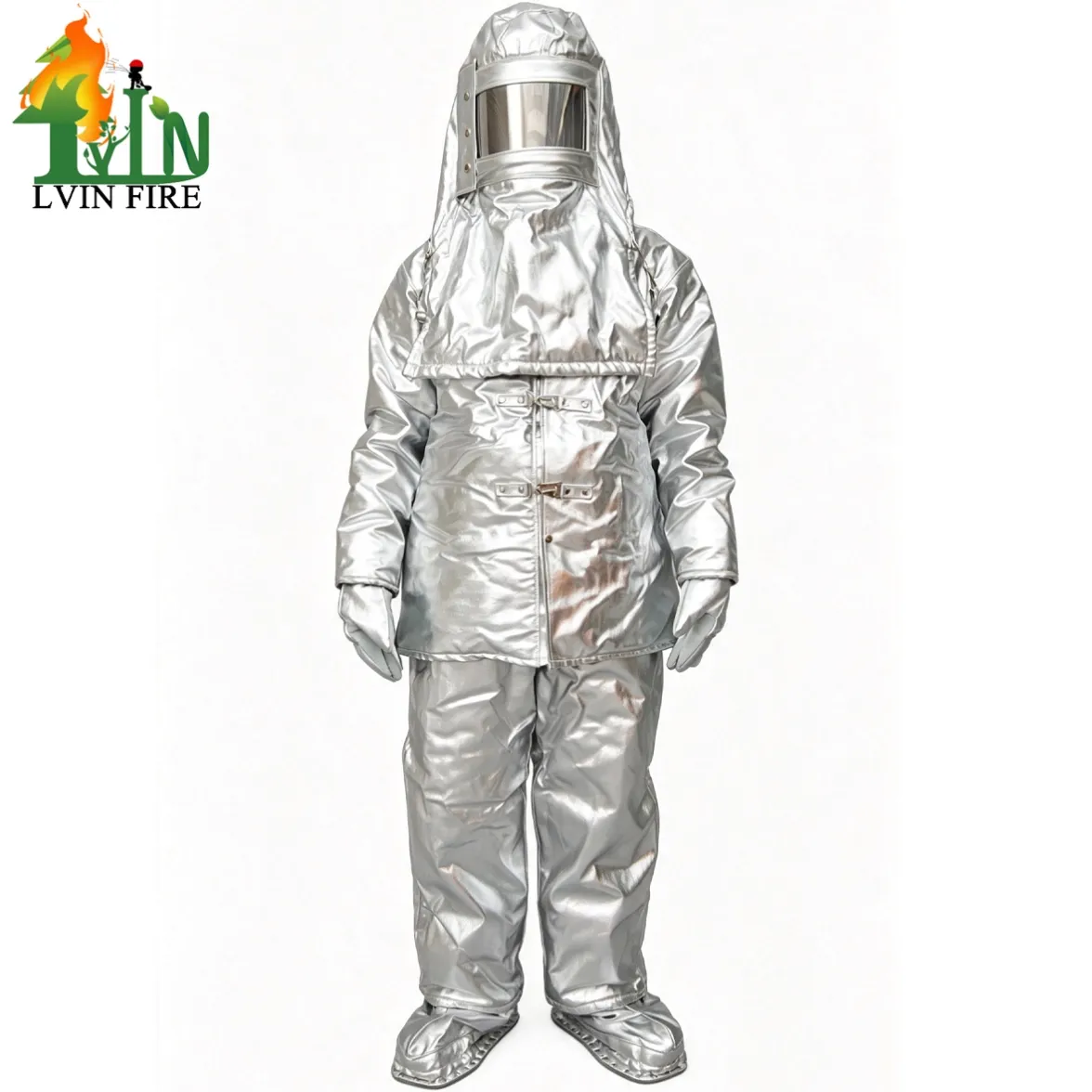

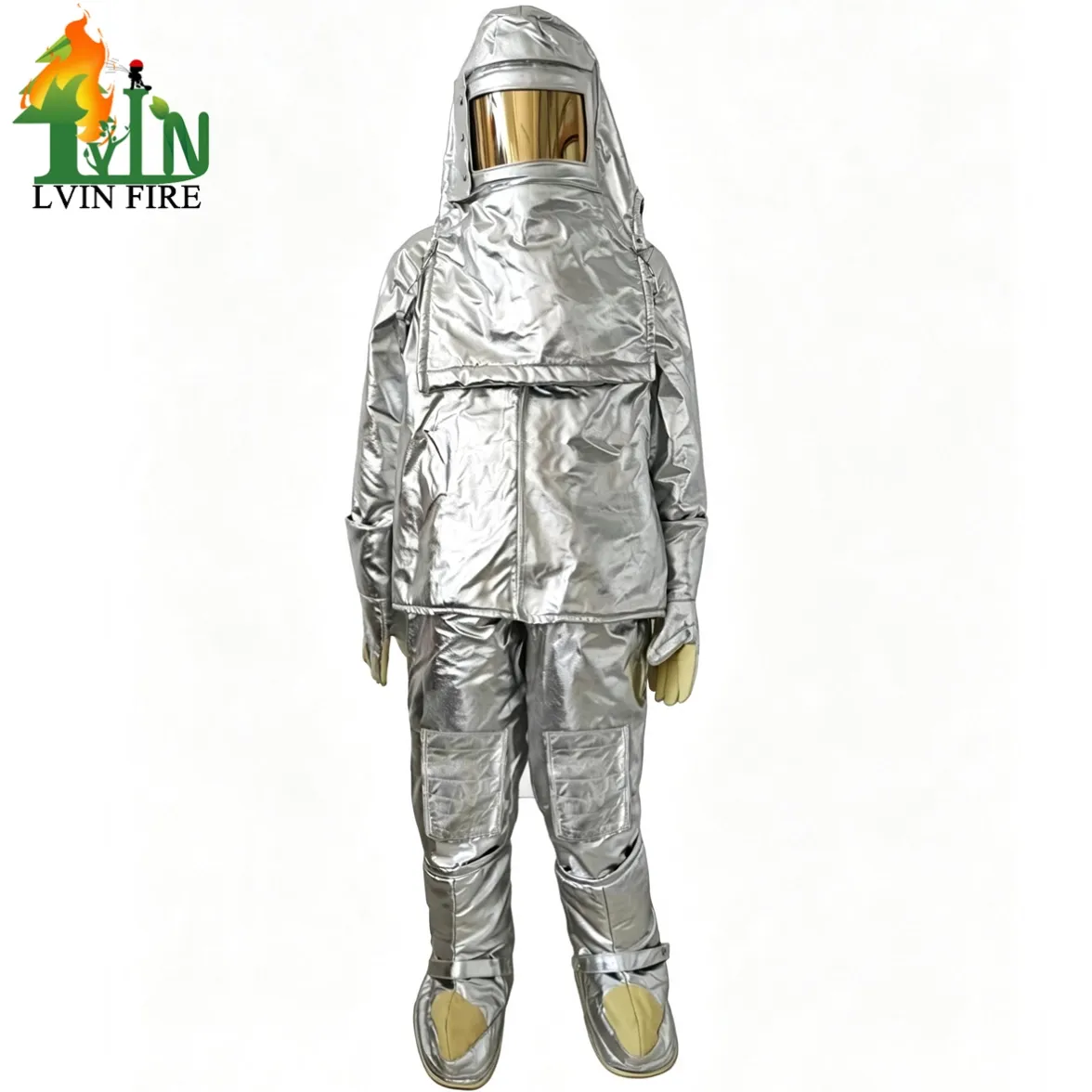

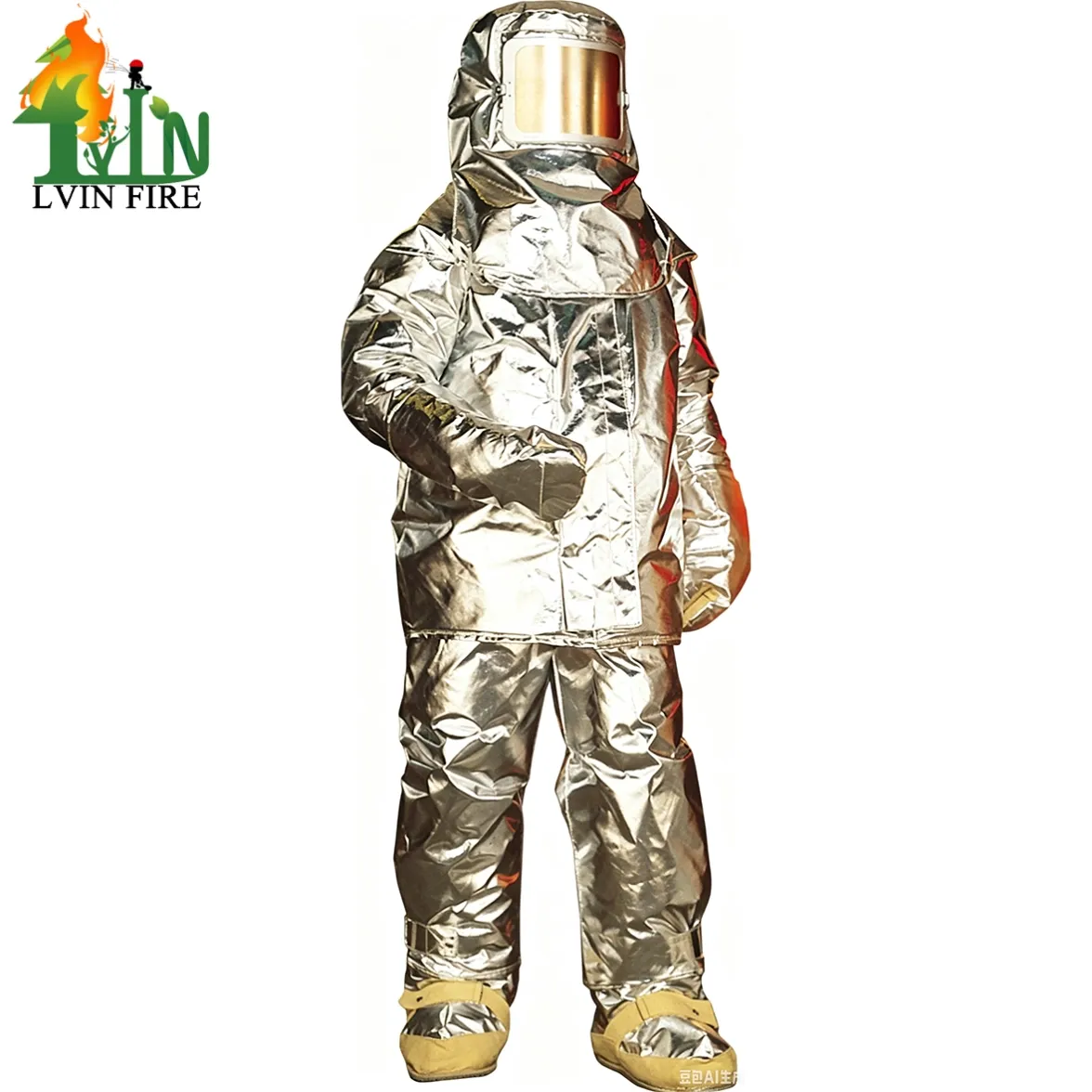

Structural Fireman Suit
NFPA standard Aluminum Fire approaching suits
LV-FS603 Fire approaching suits is made of aluminum foil composite flame retardant and high temperature material . It is used for the whole body protection of the Heat radiation place and the fire protection equipment which is necessary to rescue the trapped personnel or save the precious material. This Fire approaching suits with high temperature, light, soft, fire resistant and heat insulation under many other Characteristics. It is a protective suit for firefighters to fire
Structure:
The Fire approaching suits consisit of Hood,Jackets,Pants,gloves,shoes
split type. The hood screen is for impact Gold-plated glass.
Whole parts with 7 layers:
Ourtershell:Dupont aluminum foil
Second layer：High temperature resistant substrate fabric
Third layer:Kevlar fabric
Fourth layer: aramid fire super cloth carbon fiber
Fifth layer: Aramid Fire Insulation fabric
Sixth layer:Heat resistant composite fabric
Seventh layer:flame retardant cotton comfortable layer
Standard: EN1486-2007、EN6942-2002、EN702-1995
Chracteristics:
1, Using multi-layers fire-resistant materials, with high efficiency fire
resistance, heat insulation, Effective resistance to heat infiltration and
flame high temperature radiation.can be directly through the fire scene.
Maximum temperature of contact object is 1300 O C,the back can be
wear with SCBA.
heat radiation temperature ≥1800 o C;
2, Using the front open design, the super long Fireproof zipper, the
double head is convenient to close quickly and Open
3, Fireproof rubber outsole, the wearer can wear fire boots directly into,
unrestricted.
4, the complete set of can carry the bag, super convenient, can be the first
time to rush Rescue at the scene of the fire
Technical Performance:
1, thermal radiation reflectivity: can reflect more than 90% of the
radiation heat;
2, radiation-resistant high-temperature performance: close to 1000 o C for
more than 1 hours, 1300 o C for more than 30 minutes, 1800 O C for
more than 20 minutes;
3, heat insulation performance, after 20 minutes of work through the fire,
the temperature in the inner layer will not exceed 20 O C;
4, flame-retardant performance:
Radial: Damage length 0CM, continuous burning time 0S, smoldering
time 0S
Latitude: Damage length 0CM, continuous burning time 0S, smoldering
time 0S
5, Material strength: Radial tearing strength 126N, weft tearing strength
60N
6, abrasion resistance:150 times of pressure friction by a-100# grinding wheel, no grinding of
material
7, Humidity Aging performance:-30 o c to o C for 72 hours, no
significant changes in performance
8, water permeability resistance: Greater than 4000Pa
Application:
Chemical plant, oil refinery, airport, fire brigade, Forest first aid, oil and
gas pipeline rescue and other professional fire emergency personnel
equipped.
